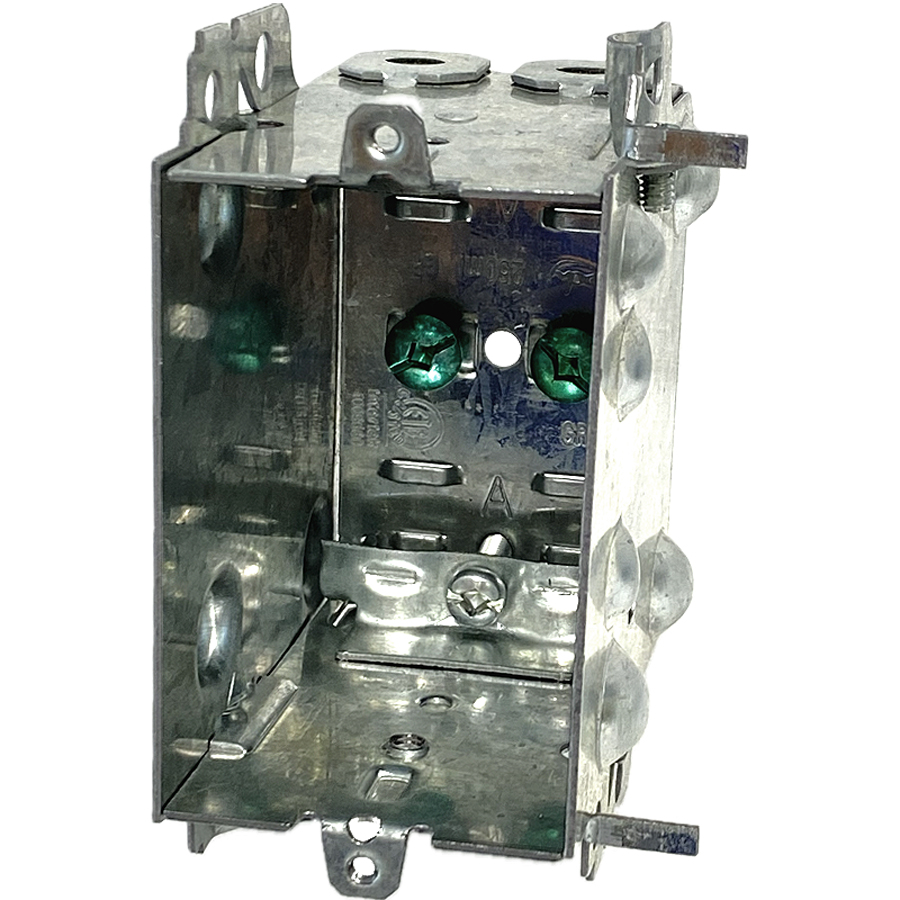

BE1004-LH

Metallic Device Box
Deep 1-Gang (Gangable)
Universal Cable Clamps
Prepositioned Depth Tabs
2”W x 3”H x 3″Depth
15 cu.in. (245 cm³)
Spec Sheet

Features

Device boxes are used for housing wiring devices such as switches or receptacles. The galvanized steel construction makes this unit strong and corrosion resistant.

  • cETLus Listed | CSA Certified
  • Metallic utility device box
  • Universal cable clamps secure both non-metallic sheathed (NMD) and armoured cable (BX/AC), and feature legs to maintain elevation for easier cable entry
  • Cable pryout ends – 2 on top and 2 on bottom
  • Two embossed mounting slots for internal screw installation
  • Extended sides for external nailing
  • Prepositioned depth tabs with 1/2″ setback for easy installation
  • Embossed sides for structural stability
  • Combination screws (square & flathead)
  • Gangable – Easily manipulated to be grouped together to form a multi-gang box
  • For use in new construction applications
  • Suitable for residential applications
